G121EAN01.0友達12.1寸液晶屏 2024年初會有變更G121E

　　1、 Purpose

　　Due to product strategy consideration, G121EAN01.0 will launch a new cell glass and related EE parts components for better allocation.

　　2、Changes

　　- From G3.5 change to G5 FAB

　　- Gate IC: from Novatek (AU65208H) to Radium (RM76870)

　　- New PCBA layout to accommodate new Gate IC

　　3、 Desired Implementation Method & Date

　　2024/01/19 ; RUNNING CHANGE ;

　　4、 Attachment

　　EC Notice of Cell FAB Change to G5

　　1、Purpose：In order to increase production capacity allocation，need to verify another cell Fab for better allocation。

　　2、Change Items

　　-From G3.5 change to G5 FAB

　　-Gate IC: from Novate(AU65208H) to Radium(RM76870)

　　-New PCBA layout to accommodate new Gate IC

　　3、Verification schedule：

　　a.RA300hr/EMI/EMC/optical test would be ready on the end of July。

　　b.Sample would be available around by the early of June。

　　G121EAN01.000 VS G121EAN01.001

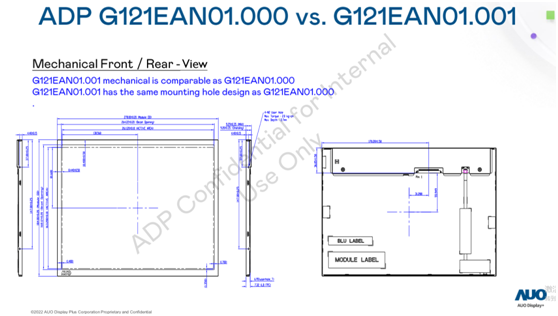

　　G121EAN01.001 has the comparable/key specs as G121EAN01.000，only cell FAB change to G5.

（Preliminary）Spec.	G121EAN01.000(Before EC)	G121EAN01.001(After EC)
Outline Dimensions (mm)	278.0 x 184.0
Thickness (mm)	9.29
Active Area (mm)	261.12(H)x163.2(V)
Resolution (Pixel)	1280 RGB(H)×800(V)
Display Mode	AHVA
Contrast Ratio	800:1 (Min.)
Brightness	500(Typ.)
Response Time (typ.)	25 ms
Viewing Angle_ CR>10 (typ., H/ V)	89 / 89 / 89 / 89
LED Life Time	70K
Weight	480g

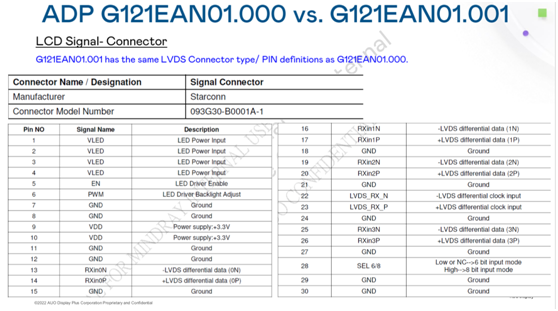

Interface	LVDS
Support Color	16.2M (8bit) / 262K (6bit)
Color Gamut (typ.)	72%
W(x, y) (typ.)	(0.313 , 0.329)
Power Consumption	6.06W
Power Supply Voltage (typ.)	12V
Operation Temp. (℃)	-30 ~ 85 ℃
Storage Temp. (℃)	-30 ~ 85 ℃
Remark	-----	New PCBA due to gate IC quantity is changing from 2pcs to 1 pcs after EC.
